Project Description

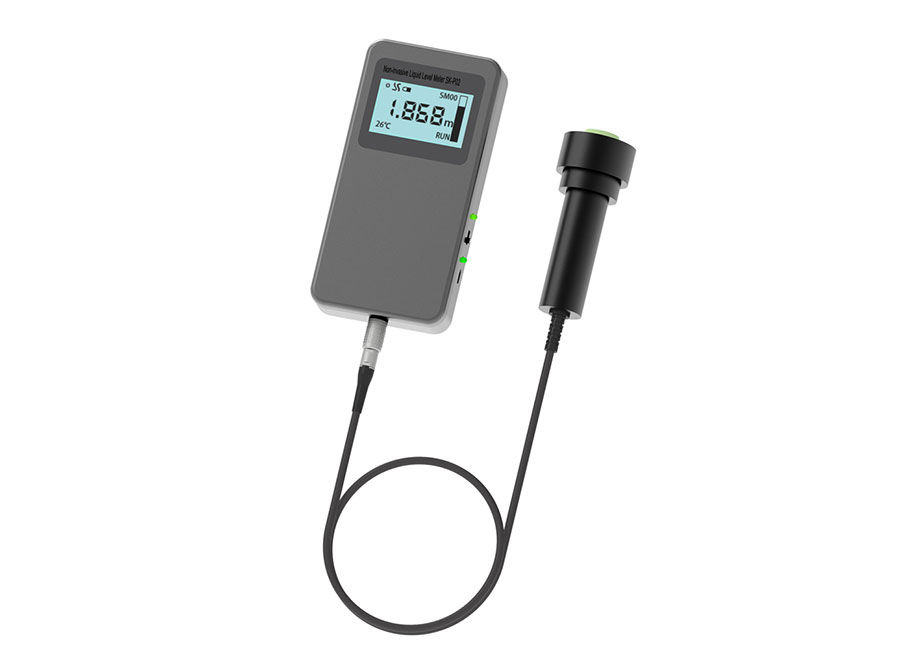

便携式液位计/手持液位计

便携式液位计/手持液位计是一种超声波液位指示器,可用于测量任何单层储罐,CO2气瓶,容器或管道的液位测量。

  • The remaining liquid level of the gas tank can be checked by APP or LED light.

  • Non-invasive measurement.  It truly realizes external Non-contact level measurement.

  • Suitable for various types of steel and aluminum LPG gas cylinders and composite gas cylinders.

  • Quickly and precisely measures the gas level in kilograms and per cent.

  • The sensor is attached to the bottom of the gas cylinder by magnets.

Send My Inquiry Now
  • Portable Level Indicator

便携式液位计/手持液位计产品特点

  • 它可以测量罐,缸和容器中液体的体积含量。
  • 它可以检测罐中的液位,例如CO2气瓶等。
  • 电池供电。
  • LCD显示屏显示您需要的信息。
  • 在不到5秒钟的时间内,您可以算出储罐的液位或剩余体积。

便携式液位计/手持液位计的工作原理

The Gas Cylinder Level Sensor uses ultrasonic technology, It breaks through the traditional installation method of open can contact and realizes the real non-contact measurement of the height of the inner boundary of the closed container. The sonar sensor (probe) is installed at the bottom of the outer wall of the container to be tested. It is easy to install and can be installed online without opening holes on the container to be tested.

The Gas Cylinder Level Sensor adopts the principle of ultrasonic echo ranging, uses the special probe externally attached to the container to collect ultrasonic signals, and uses the special algorithm to accurately calculate the liquid level position in the gas cylinder.

外贴式液位计

关于便携式液位计/手持液位计的更多信息

 Storage tanks, totes, and containers can be found in a wide variety of environments, from indoor or outdoor installations to above or below ground deployments.

Properly monitoring and managing levels inside these tanks can help owners and asset managers increase productivity and profitability.

There are many technologies to choose from that vary in terms of accuracy, reliability, and costs. Visual inspections and measuring sticks may be relatively inexpensive, but they are labor-intensive and prone to error because they rely on manual reporting methods.

便携式液位计/手持液位计在各种储罐或管道中的应用

Portable Level Indicator liquid ammonia

Portable Level Indicator for liquid ammonia tank

Portable Level Indicator liquid ammonia

Portable Level Indicator for CO2 Cylinder

Portable Level Indicator liquid ammonia

Portable Level Indicator for liquid ammonia tank

Portable Level Indicator liquid ammonia

Portable Level Indicator for propane tank

如何使用便携式液位计/手持液位计

It is convenient to use:

  • Clean the inspection location of the storage tank
  • Attach the probe to the detection location of the storage tank
  • If you only need to detect the liquid level, no setup is required, you can detect the result in 5 seconds.
  • If you need to measure the level height, just set the speed of sound to measure the level height.

技术参数

Specifications
Max Measuring Range 5m
Max Tank/Vessel Wall Thickness 30mm
Column 0 Value Column 1 Value
Power Supply 3.7v Lithium Battery/2*1.5V AA alkaline battery
Charge USB
Display LCD 128×64
Unit Weight 1kg
